The Pocket Universe: How Medieval Astronomers Mapped the Stars
Team Ilm Ora · 18 October 2026
Before satellite GPS and digital compasses, navigating the open desert or sailing across vast oceans required reading the position of the sun and stars. In the medieval world, astronomers and navigators solved this challenge by inventing one of the most sophisticated portable analog computers in human history: the astrolabe. Developed and perfected across the Islamic world during the golden age of science, the astrolabe was a heavy, beautifully engraved brass disk that functioned as a pocket-sized model of the universe. By aligning its rotating metal plates with the night sky, travelers could tell exact time, calculate their latitude on earth, find the direction of Mecca, and predict planetary movements with remarkable precision.
The Geometry of the Planispheric Astrolabe

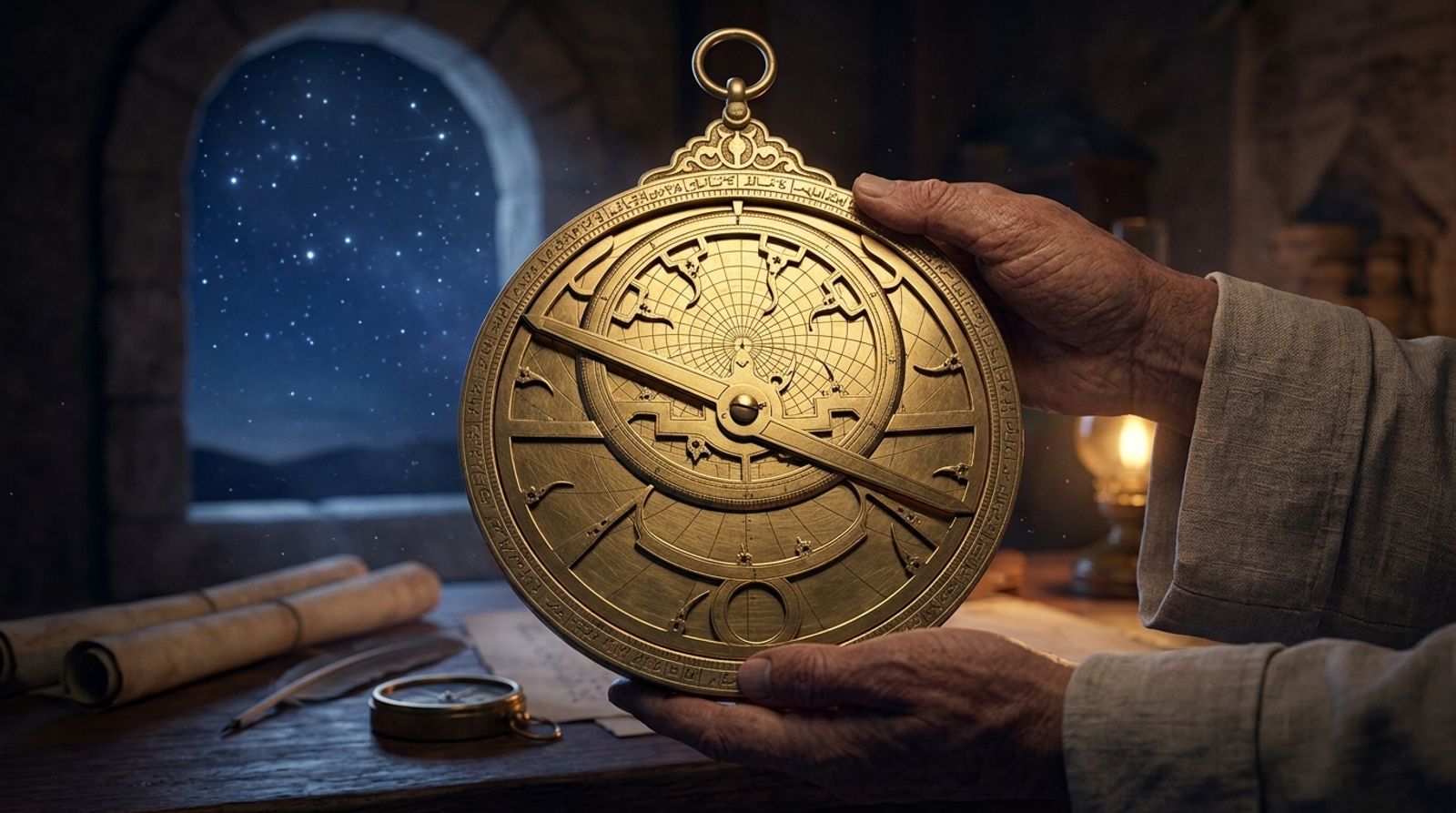

To understand how an astrolabe works, one must look at its brilliant geometric design. The device is based on a mathematical technique called stereographic projection, which flattens the three-dimensional celestial sphere of the stars onto a flat two-dimensional brass plate. A standard astrolabe consists of a heavy outer ring called the mater, which holds several inner plates engraved with coordinate grids custom-calculated for specific latitudes. Above these plates sits a rotating skeleton frame called the rete, which features delicate metal pointers representing the positions of the brightest navigational stars. By turning the rete until the star pointers match the observed night sky, the instrument creates a miniature, working model of the heavens right in the user's hand.
Telling Time and Finding Direction
The astrolabe was an indispensable tool for both daily life and scientific inquiry. In medieval cities, timekeeping was essential for scheduling daily prayers and trade markets. By aiming the back of the astrolabe—equipped with a sighting arm called an alidade—at the sun during the day or a bright star at night, an observer measured the altitude angle above the horizon. Rotating the front plate to match that angle instantly revealed the exact local time. For travelers crossing featureless deserts or sailing across the Mediterranean Sea, the astrolabe served as an absolute compass. By measuring the height of the North Star, navigators calculated their exact latitude, ensuring they stayed on course across dangerous waters.
Craftsmanship and Scientific Collaboration
Building an astrolabe required an extraordinary blend of astronomy, spherical geometry, and master metalworking. Artisans cast heavy brass plates, polished them to a mirror finish, and used fine chisels to engrave complex star coordinates by hand. Many surviving astrolabes feature inscriptions in Arabic, Hebrew, and Latin, reflecting a rich tradition of scientific collaboration across cultures. Astronomers in Baghdad, Cordoba, and Cairo continuously updated the coordinate plates and added new mathematical scales to the back of the instrument, turning the astrolabe into a universal scientific calculator used by scholars for over a thousand years.
The Roots of Analog Computation
The astrolabe represents a vital milestone in the history of computation. Long before electronic computers processed digital data, medieval astrolabes used physical gears, disks, and proportional scales to solve complex trigonometric equations mechanically. They proved that human beings have always possessed a deep drive to build physical tools that help us understand our place in the vast cosmos.
With a circle of engraved brass and a handful of star pointers, medieval scholars turned the entire night sky into a pocket-sized calculator.
